Hongze County Ruifeng Tools Co., Ltd.——Professional hard alloy burr knife manufacturing.
 |
Tooth profile: double cut
Alloy grade: cemented carbide of application group K30 = YG8 ISO 513 - 75
Bending strength (MPA): 1700
Coating: uncoated / TiAlN
Rod head hardness: HRA 89-91
Handle hardness: HRC 40

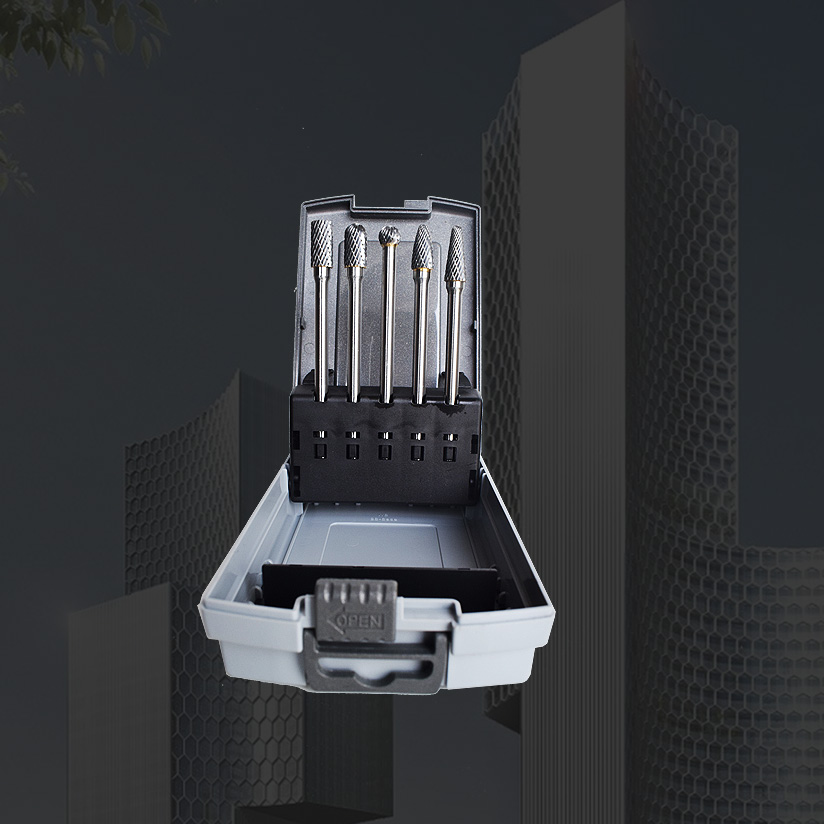

Packing: plastic box
SA-3L119
XUEREN
0002
| Quantity: | |
|---|---|

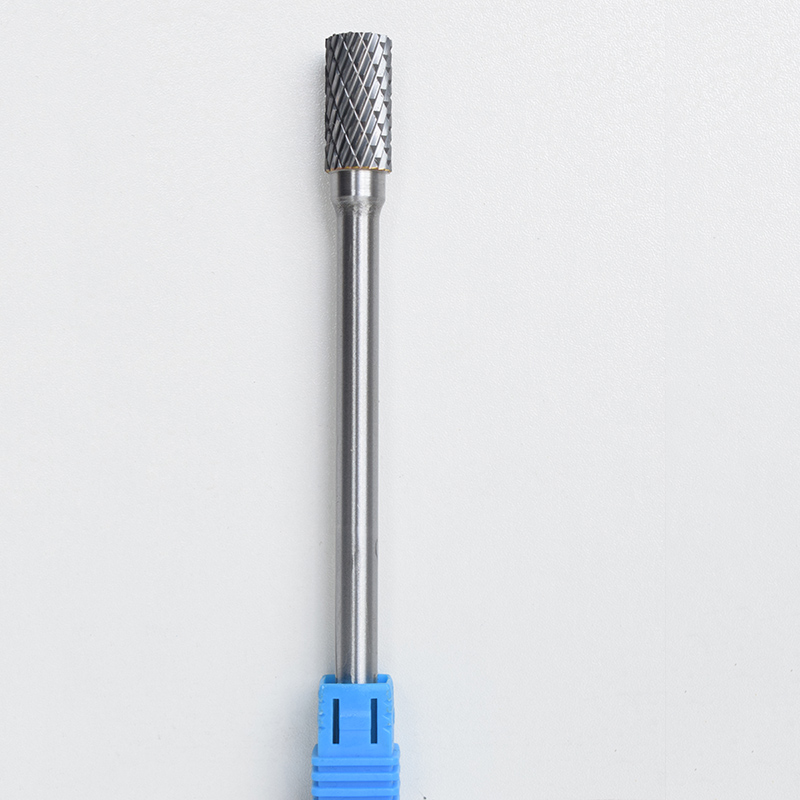

SA-3: Cylindrical shape3/8" x 3/4"-1/4"Shank |
SC-3: Cylindrical radius end3/8" x 3/4"-1/4" shank |

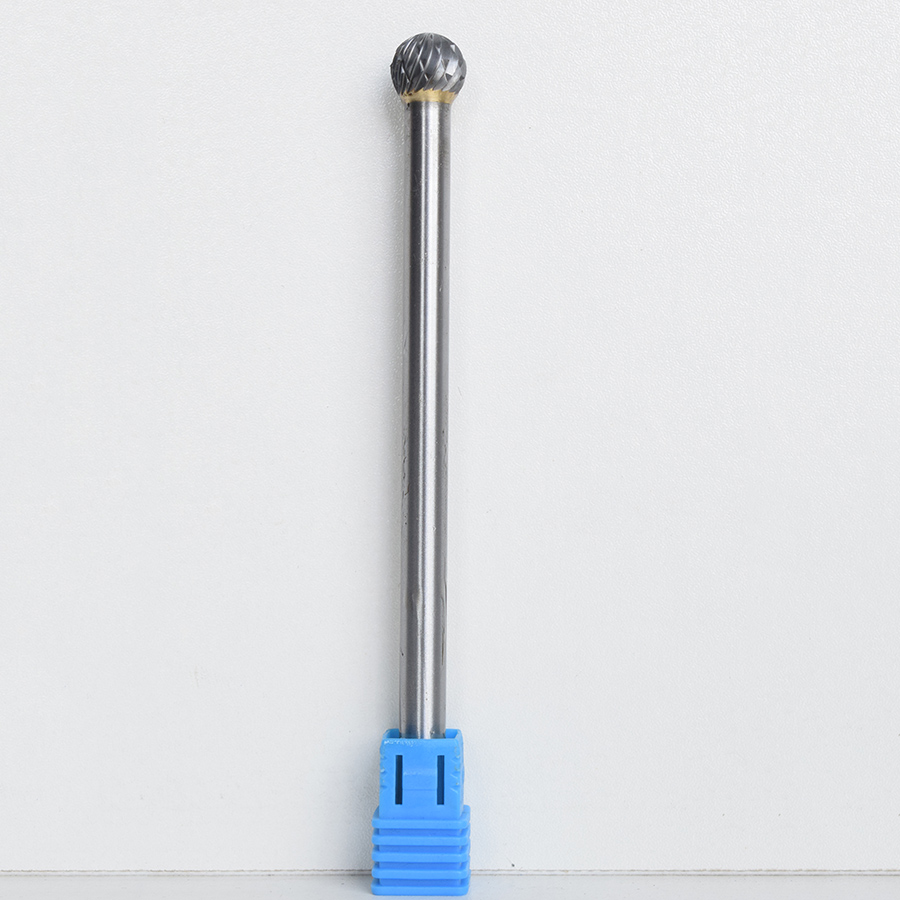

SD-3: Ball shape 3/8"-1/4" |
SF-3: Tree shaped radius end3/8" X 3/4"-1/4" shank |

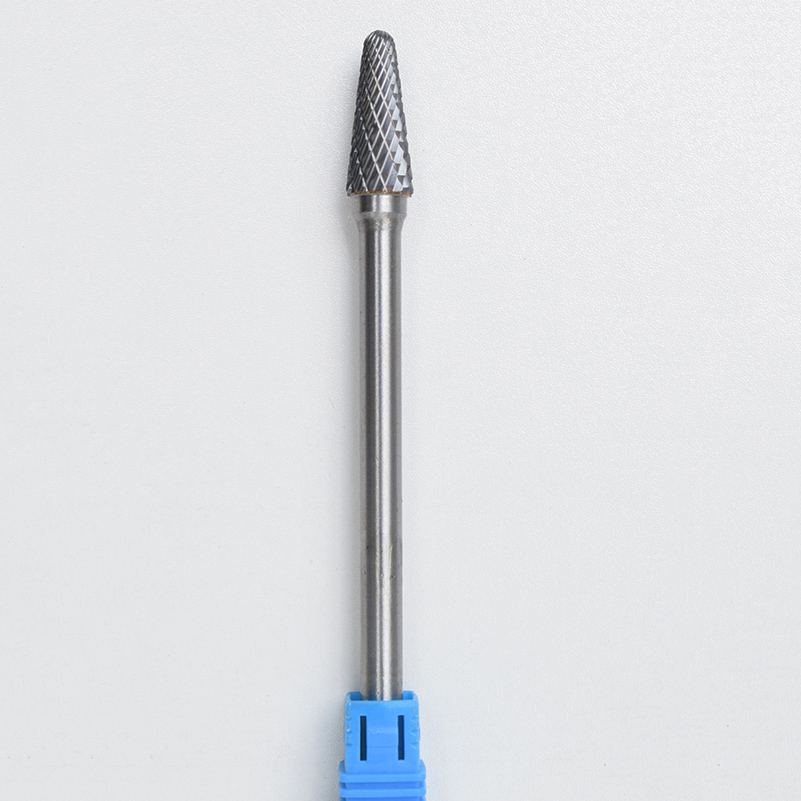

SL-3: Taper shap-Radius3/8"x1-1/1 6"-1/4"shank |
Download
Various non-standard carbide rotary files can be produced according to customer customization
MATERIAL Tungsten Carbide, high hardness and good toughness, machining hardness reach to HRC65.
Rotary files have more cutting edges and will remove material much faster and leave a smoother finish than single cut due to producing smaller chips as they cut away the material.
SIZE - Shaft -1/4 inch or(6mm) Outer diameter of the tip1/8inch(3.175mm) - 31/32 inch(25mm) Total length 38 - 81mm, Suit for (6mm)or 1/4 Inch electric die grinder.
CUTTING BURR SHAPE Ball, Pointed Tree, Round Nose, Cylinder with End Cut, Cylinder with Round Head.
TUNGSTEN CARBIDE BURRS Rotary tool bits used for cutting, shaping, grinding and for the removal of sharp edges, burrs and excess material (deburring).
* Carbide Rotary Burrs Bits widely used in machining iron,steel casting,carbon steel,alloy steel,stainless steel,hardened
steel,copper aluminium etc.
* Ideal for cleaning up welds, grinding weld beads, shaping parts, smoothing rough castings, or porting cylinder heads.
Warm Tips:
* Please don't let children touch it.
* Ensure your burr shank is well inserted into your collet and clamped down tightly.
* Please wear protective equipment correctly to avoid injury
